The All New Summertime Fish

Shaper Breakdown ZipstaFish Quad
PlayPlay

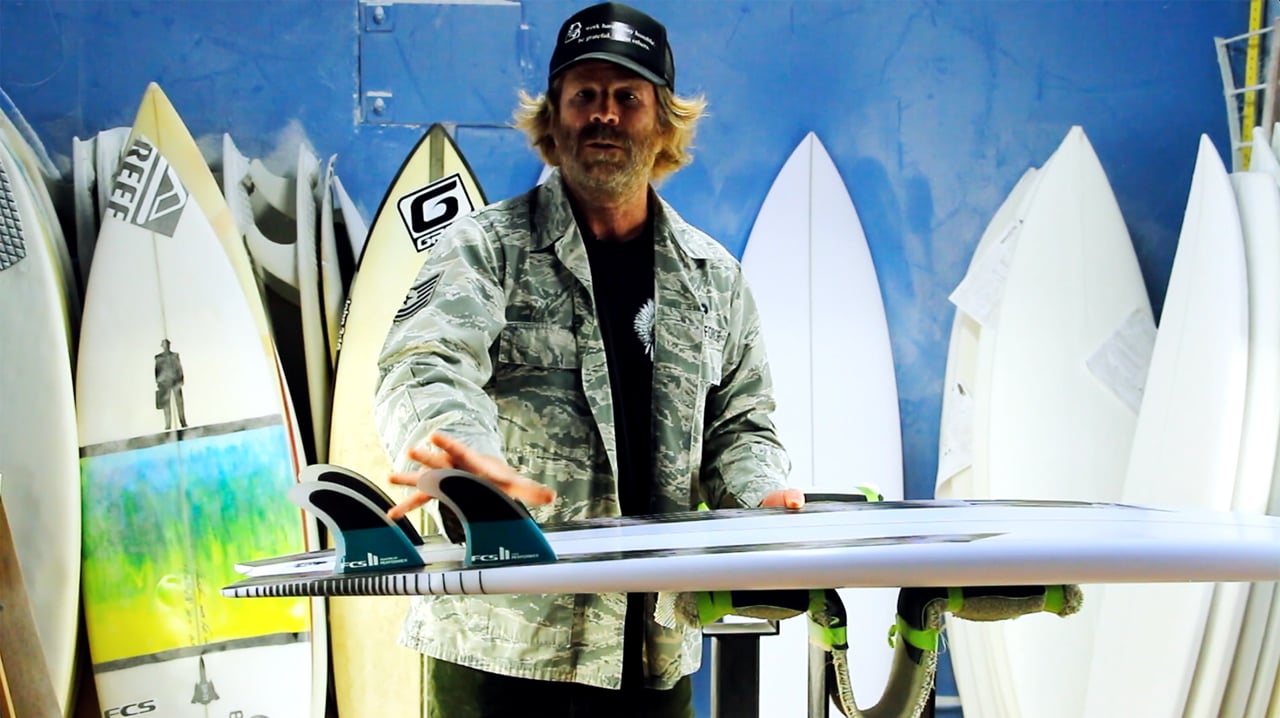

Shaper Breaks Down the ZipstaFish Quad Summertime Fish

Listen to Todd describe the design features that make up the new ZipstaFish quad surfboard. A small wave summertime fish, grandson to the ZipStitch. Using a quad provides increased rail hold and drive through turns while still providing more freed-up speed with no trailer fin in the center. Shallow swallowtail allows you to really get your foot back on the tail.

previous arrow
next arrow
Shaper Breakdown ZipstaFish Quad

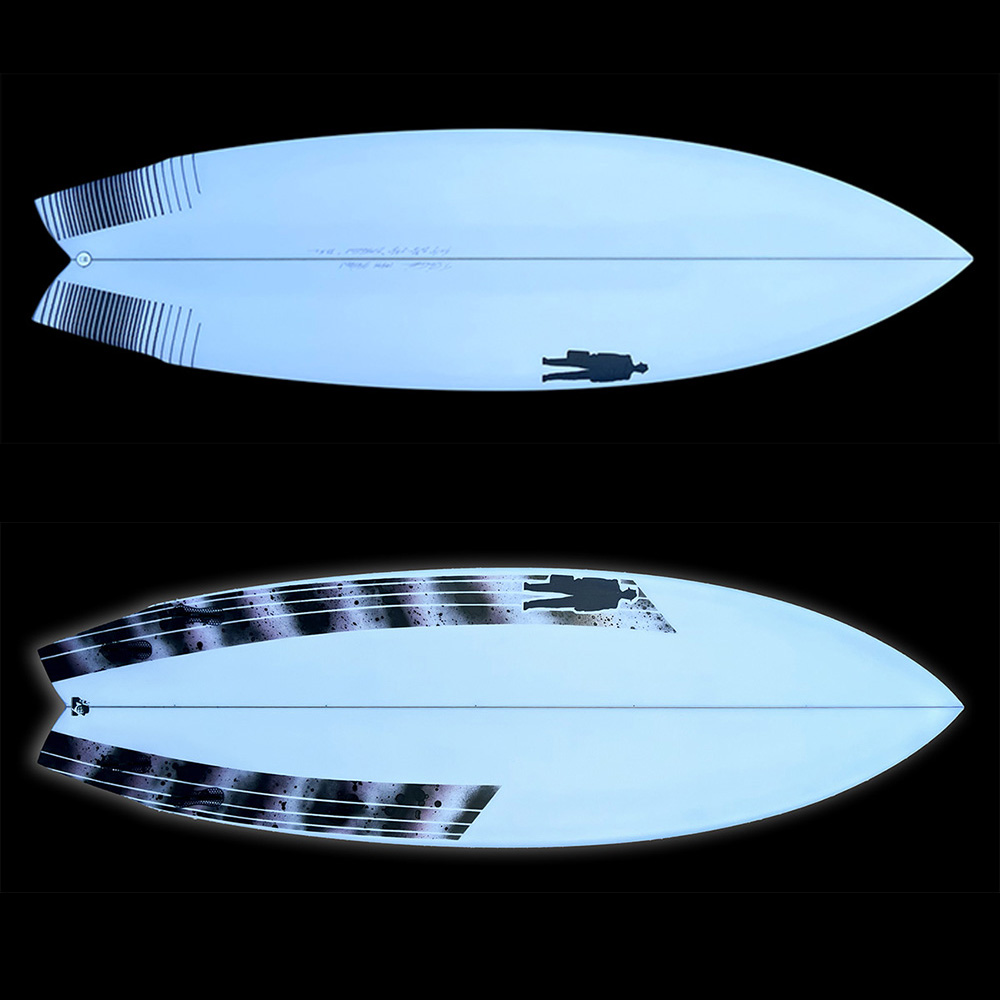

zipstafish quad deck & bottom view

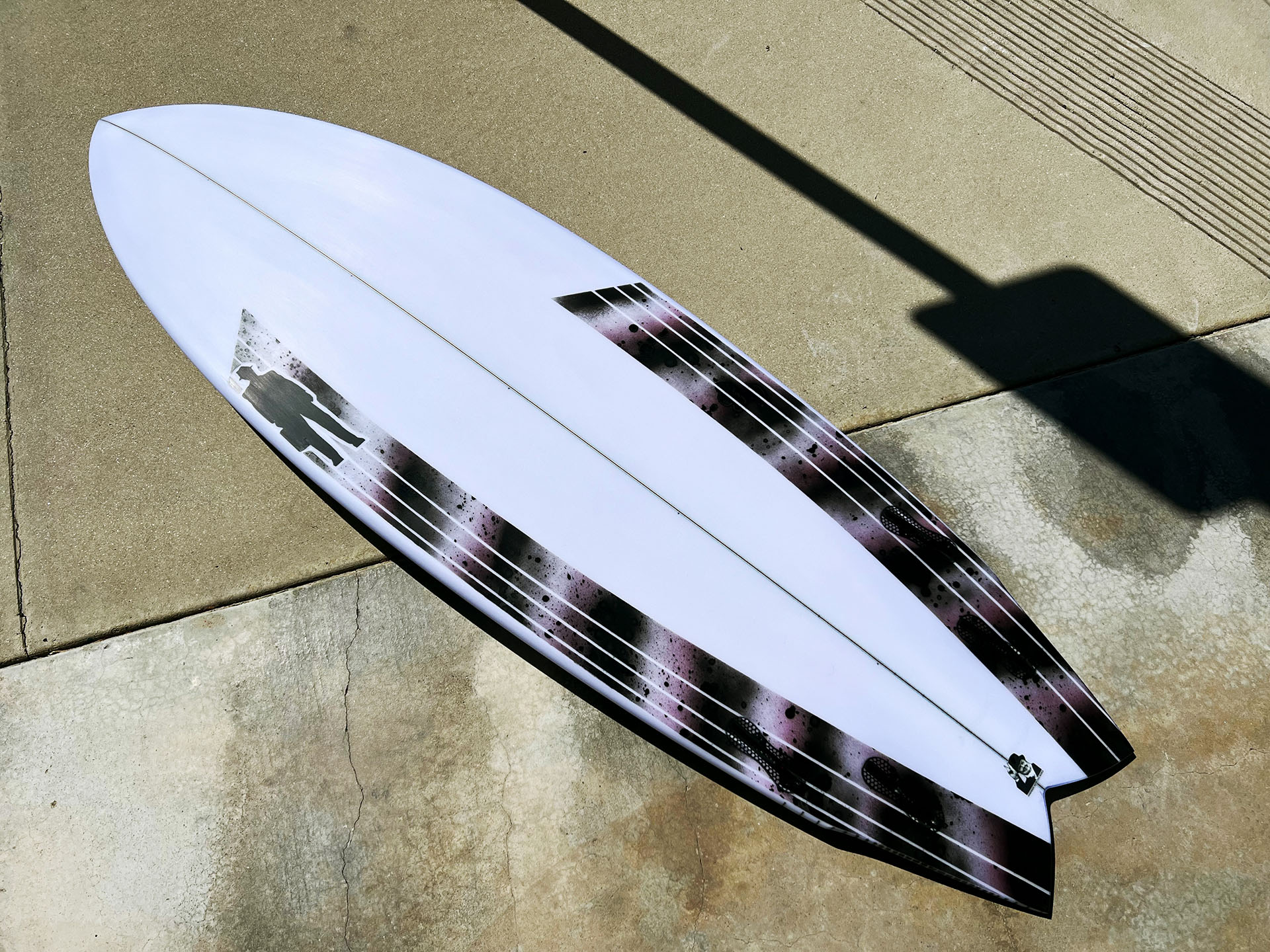

zipstafish summertime fish with custom rattle can art by todd proctor

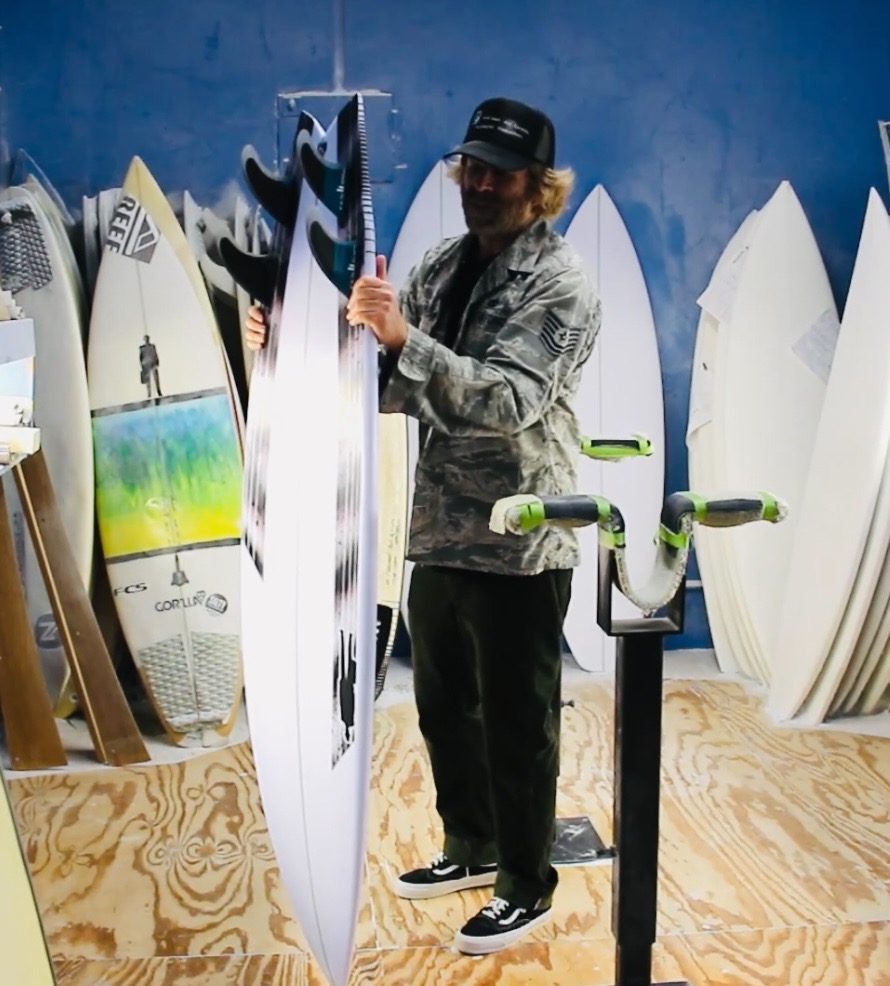

Toddd with the Zipstafish Quad

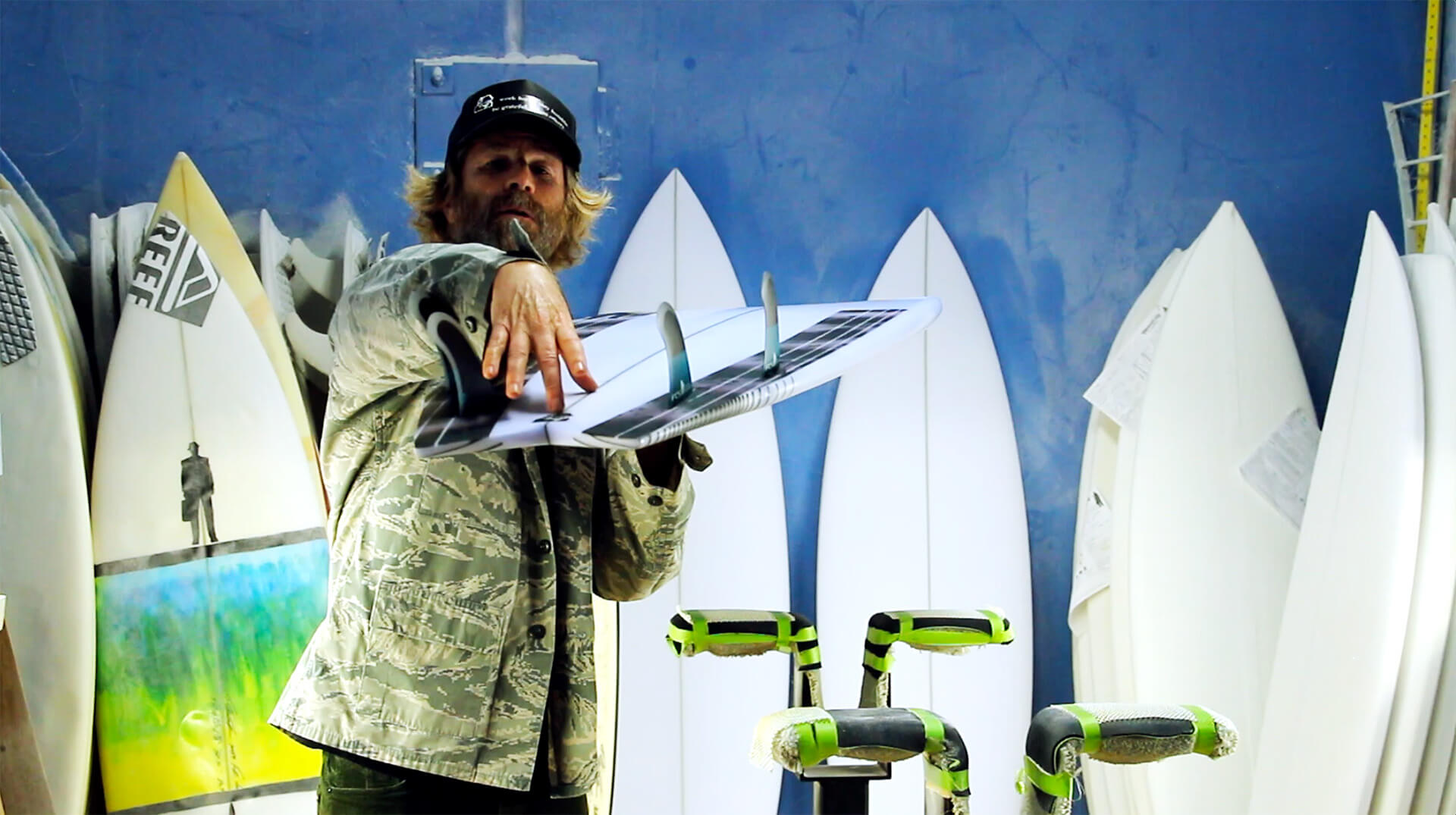

zipstafish quad shaper breakdown on quad setup

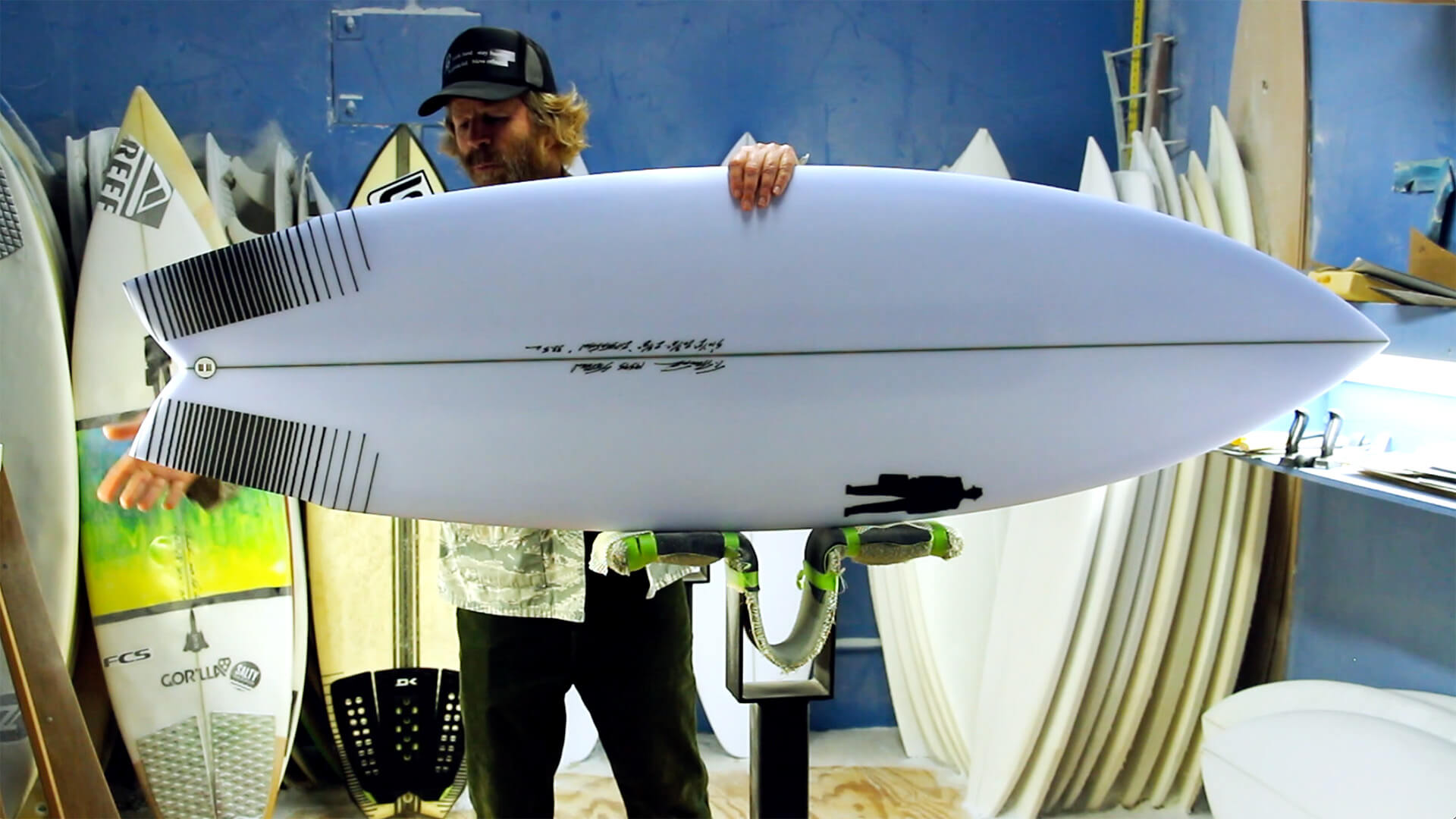

zipstafish quad shaper breakdown outline
previous arrow
next arrow
zipstafish bottom qua fin with custom spray
previous arrow
next arrow

Introducing the ZipstaFish Quad. A fishier version of the Zipstitch.

This summertime speedster uses a slightly flatter, two stage rocker with the apex point in the bottom curve just ahead of the front foot. This creates steady drive off the front foot, necessary in small waves as well as softer waves.

Low entry rocker as well makes it a speedy paddler.

A single to double to spiral vee hull contour keeps it “unstuck” and skimmy across dead spots.

A flatter deck and pinched low volume rails, especially through the fins, lets you knife the rail with dynamic responsiveness.

The quad set up gives you an extra gear of speed as quads love to do, yet with more drive and grip on rail than a twin fin.

Made for waves ankle to shoulder high, but goes killer in bigger softer waves too.

Recommended to be ridden an inch shorter, an inch wider and at the same liters as the Zipstitch. I also recommend glassing this board nice and lite to feel the increased lively flex of the flatter deck line how it springs out of turns. There is a five fin option too so you can go quad or as a two plus one twinny with trailer.

ZipstaFish is grandson to the Zipstitch Surfboard. Ride this one the same volume and about 1 inch shorter & 1 inch wider.

For example:

5’11” x 19 3/4″ x 2 11/16″ 33.5L Zipstitch for knee high – head high

5’10” x 20 3/4″ x 2 5/8″ 33.5L ZipstaFish for ankle high – knee high +
(less domed with volume distributed out to the rail)

When you flatten the rocker and make the outline fuller, that board is going to feel like it has more liters without having more liters just because it has more planing surface. Sometimes you can over-liter grovel boards and then they’re clunky. You want something responsive, quick and dynamic.

For example:

5’11” x 19 3/4″ x 2 11/16″ 33.5L Zipstitch for knee high – head high

5’10” x 20 3/4″ x 2 5/8″ 33.5L ZipstaFish for ankle high – knee high +
(less domed with volume distributed out to the rail)

When you flatten the rocker and make the outline fuller, that board is going to feel like it has more liters without having more liters just because it has more planing surface. Sometimes you can over-liter grovel boards and then they’re clunky. You want something responsive, quick and dynamic.

Todd’s picks for traction, fins, & other board essentials

FCSII Performer Quad Rears Large


Dakine Wideload Traction

  • 5’2″ x 19 5/8″ x 2 1/8″ 23.7L
  • 5’4″ x 19 3/4″ x 2 1/8″ 24.7L
  • 5’6″ x 19 3/4″ x 2 3/16″ 26L
  • 5’8″ x 20″ x 2 1/4″ 27.7L
  • 5’9″ x 20 1/8″ x 2 5/16″ 29L
  • 5’10” x 20 3/8″ x 2 3/8″ 30.7L
  • 5’10” x 20 3/4″ x 2 5/8″ 33.5L
  • 5’10.5″ x 20 3/4″ x 2 5/8″ 34L
  • 6’0″ x 21″ x 2 11/16″ 36L
  • 6’2″ x 21 1/4″ x 2 3/4″ 38L
  • 6’4″ x 21 1/2″ x 2 13/16″ 40.5L
  • 6’6″ x 22″ x 3″ 45L

any and all custom dimensions detailed directly with Todd during the ordering process

construction options & pricing

Polyester/Polyurethane

$950+
traditional foam & fiberglass - starting at ...

Proxy epoxy/EPS

$1100+
3-5 x the strength & durability of a poly, lighterweight & slightly more buoyant

Proxy Ridiculite Carbon Reinforced

$1200+
the springiest and whippiest of the standard Proxy lineup. Ultra Ultra light with strategic carbon reinforcement on stringer & tail. Great for grovelers.

Proxy w/ High Density Foam Stringer

$1250+
Proxy epoxy with high density foam stringer for a unique flex characteristic
stringerless Proxy epoxy with carbon reinforced rails
(an upgrade of our Proxy epoxy / EPS construction) a stringerless epoxy construction that uses an innegra webbing outer shell for a springier, smoother flex pattern.
any of our Proxy epoxy iterations with the addition of strategically placed carbon/kevlar mesh
a board that has the whippy feel of an epoxy with the rail hold of a poly

ZipstaFish is grandson to the Zipstitch Surfboard. Ride this one the same volume and about 1 inch shorter & 1 inch wider.

For example:

5’11” x 19 3/4″ x 2 11/16″ 33.5L Zipstitch for knee high – head high

5’10” x 20 3/4″ x 2 5/8″ 33.5L ZipstaFish for ankle high – knee high +
(less domed with volume distributed out to the rail)

When you flatten the rocker and make the outline fuller, that board is going to feel like it has more liters without having more liters just because it has more planing surface. Sometimes you can over-liter grovel boards and then they’re clunky. You want something responsive, quick and dynamic.

It acts much like the same principles guiding free friction, but allows for the fins to do their job more efficiently with less drag and more drive and a turbulence-smoothing, faster ride than ever before. Perfect for small waves and fish type shapes.

–Todd Proctor

Old world meets future world. Each board can be made with hand done one-of-a-kind resin art by request.

how to get your board

ordering options

proctor surfboards ready to ship boards in stock

Ready to Ship >> from Stock

custom order this surfboard consult with shaper

Custom Order & Detail your Board directly with Todd >>

order a stock quick 2 week build surfboard

Order Stock Quick >> 2 week build

customize your surfboard in our online board shop

Customize your Board >> in the Online Shop
